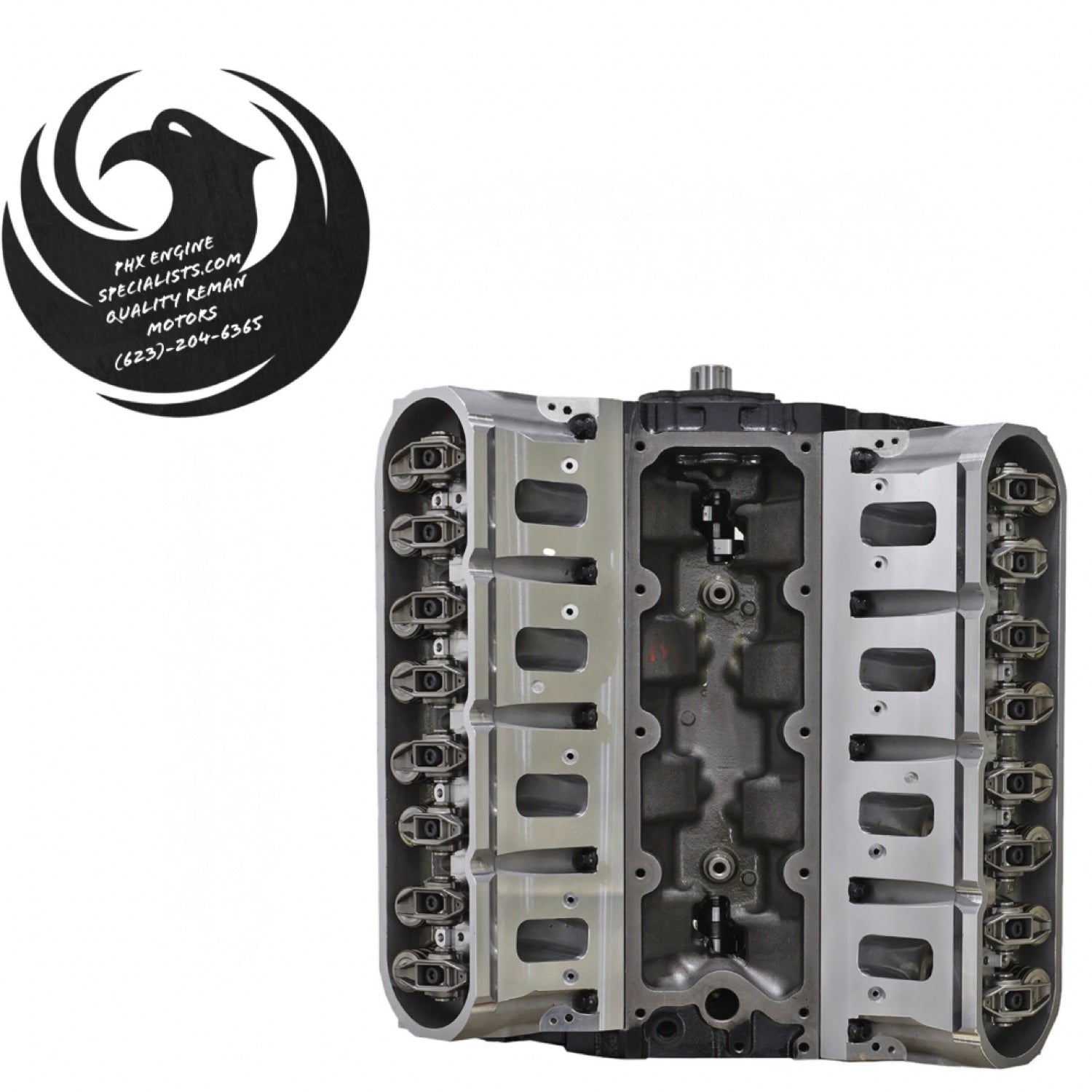

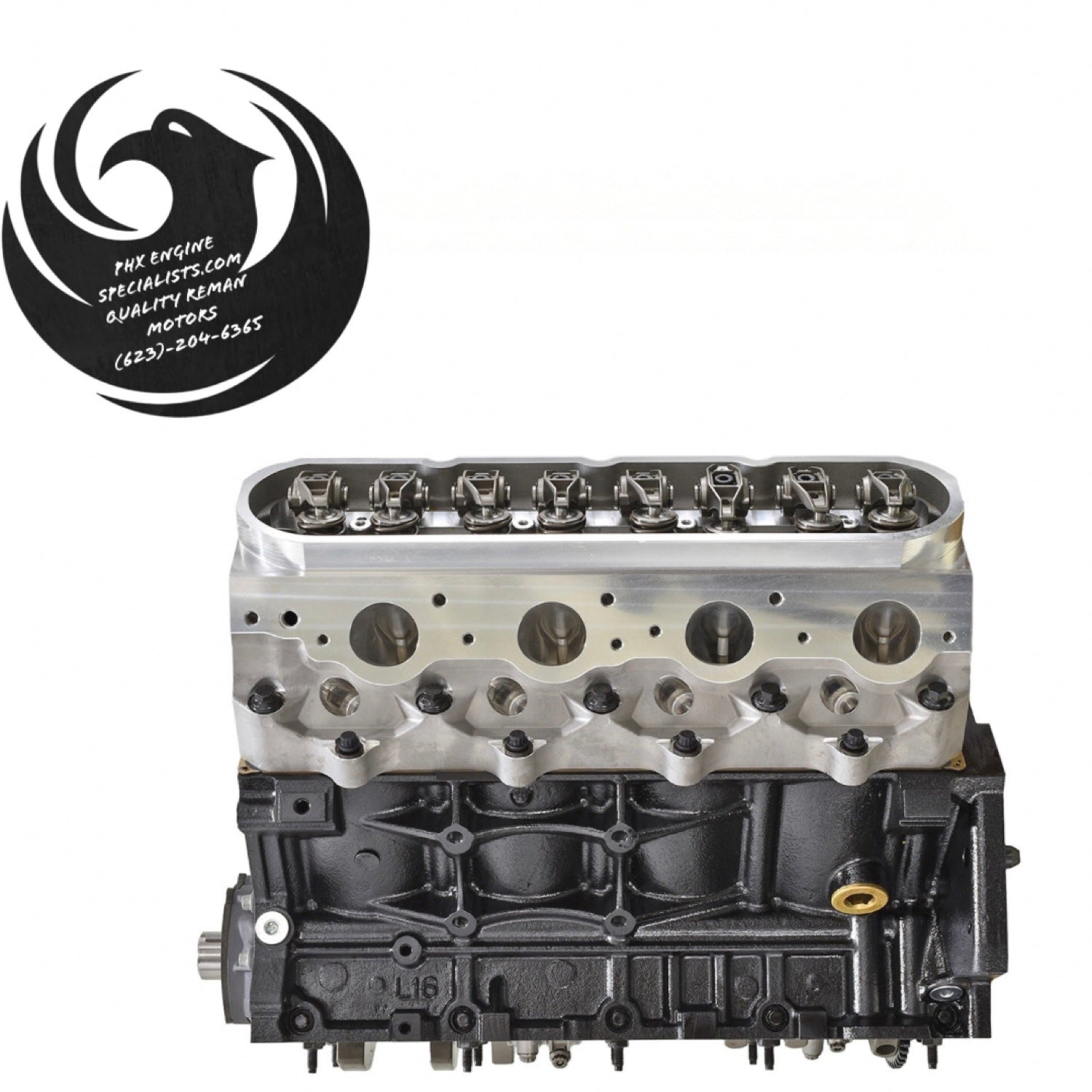

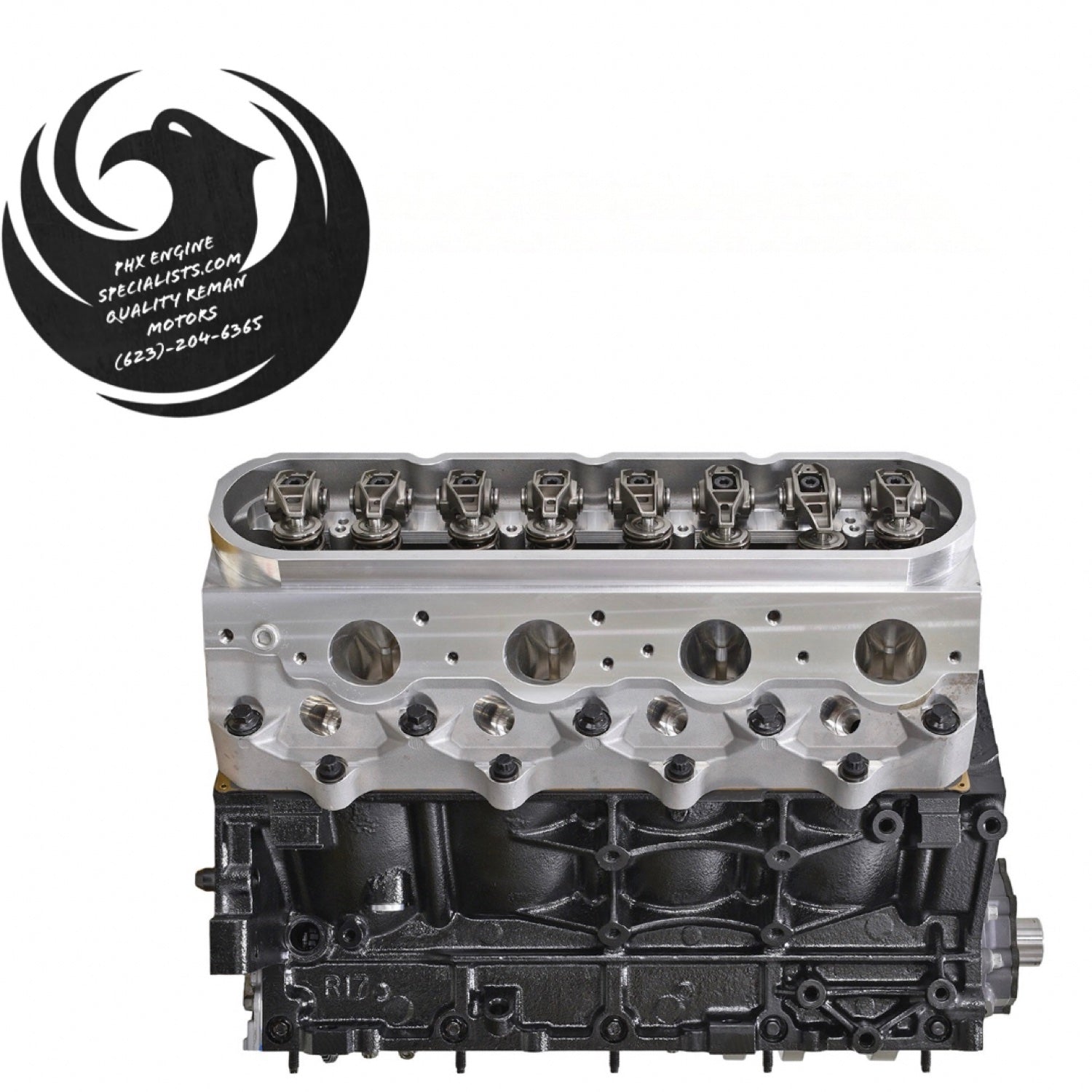

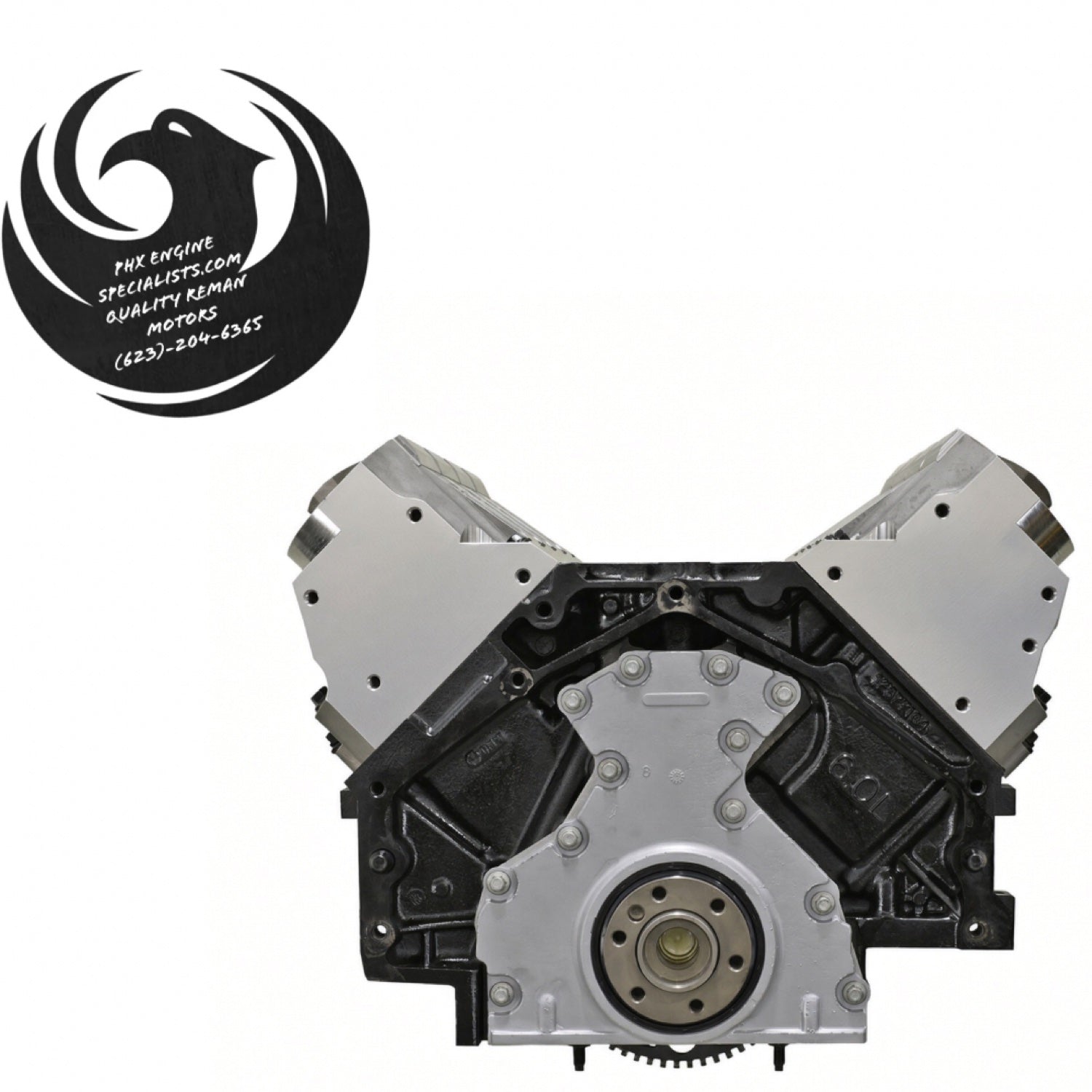

Remanufactured GM 6.0L Vortec V8 with a Stage 1-3 cam installed (Cam Motion on Non-VVT engines, COMP Cams on VVT engines, any make on request), for 2001-2007 Gen III LQ4 / LQ9 (non-VVT) and 2007-2019 Gen IV LY6 / L96 (VVT) Chevrolet, GMC, Cadillac and Hummer trucks, SUVs and vans. Choose your engine and cam above. Zero miles, built to order, free shipping, no core charge.

Build time: usually 5-7 days, plus shipping (varies by engine; contact us for current availability).

Fitment

Non-VVT (2001-2007)

VVT (2007-2019)

2010 Silverado / Sierra 2500HD, 3500HD: most have the L96 (VIN G), but some early 2010 HD trucks may have the LY6 (VIN K). Both are covered under VVT; confirm by VIN.

2007 Silverado / Sierra: 2007 "Classic" trucks use the LQ4 / LQ9 (Non-VVT); 2007 new-body 2500HD / 3500HD trucks use the LY6 (VVT).

Casting numbers

Use these to compare engines and find yours. Casting numbers are cast into the metal, not stamped.

Several engines share the same block and head castings (LQ4 / LQ9 share castings, and so do LY6 / L96), so casting numbers can't pick out one RPO by themselves. Always confirm with your VIN 8th digit (U = LQ4, N = LQ9, K = LY6, G = L96) or the RPO code on your SPID label.

Where to find casting numbers: the block casting number is on the driver side rear of the block, just above the bellhousing flange and below the driver-side cylinder head (hard to read in the vehicle; a mirror and flashlight help). On the cylinder heads, the last digits of the casting number are cast into the head near the corner/end, just below the valve cover.

Confirm your engine

• Engine: choose Non-VVT (LQ4 / LQ9) or VVT (LY6 / L96) above.
• VIN 8th digit and RPO code: U = LQ4, N = LQ9, K = LY6, G = L96. The RPO code is on the Service Parts Identification (SPID) label, usually in the glove box.
• Gen III vs Gen IV: LQ4 / LQ9 are Gen III engines with a 24x crank reluctor and the cam sensor at the rear of the block; LY6 / L96 are Gen IV engines with a 58x crank reluctor and the cam sensor in the front cover. We build to match your VIN.
• VVT: LY6 / L96 engines have a cam phaser on the front of the camshaft (behind the timing cover) and a phaser control solenoid on the front cover.
• Not sure? Choose "Not sure" in the dropdown and call 623-204-6365 or put notes on the order.

Send us your VIN with your order to confirm fitment.

Notes

• Built on your factory 6.0L cast-iron block. None of the covered engines came with AFM.
• The valley plate (lifter valley cover) is not included. Reuse yours from your current engine.

Not covered

• 1999-2000 LQ4 with cast-iron heads
• L76 / L77 (aluminum block, AFM)
• 2020 Express / Savana L96: call us (COMP VVT cam fitment is listed through 2019)
• LFA (VIN 5) and LZ1 (VIN J), 6.0L hybrid engines
• LC8 (VIN B), 6.0L CNG/LPG

Cam stages

Same price for every stage. Choose your engine (Non-VVT or VVT) and stage above.

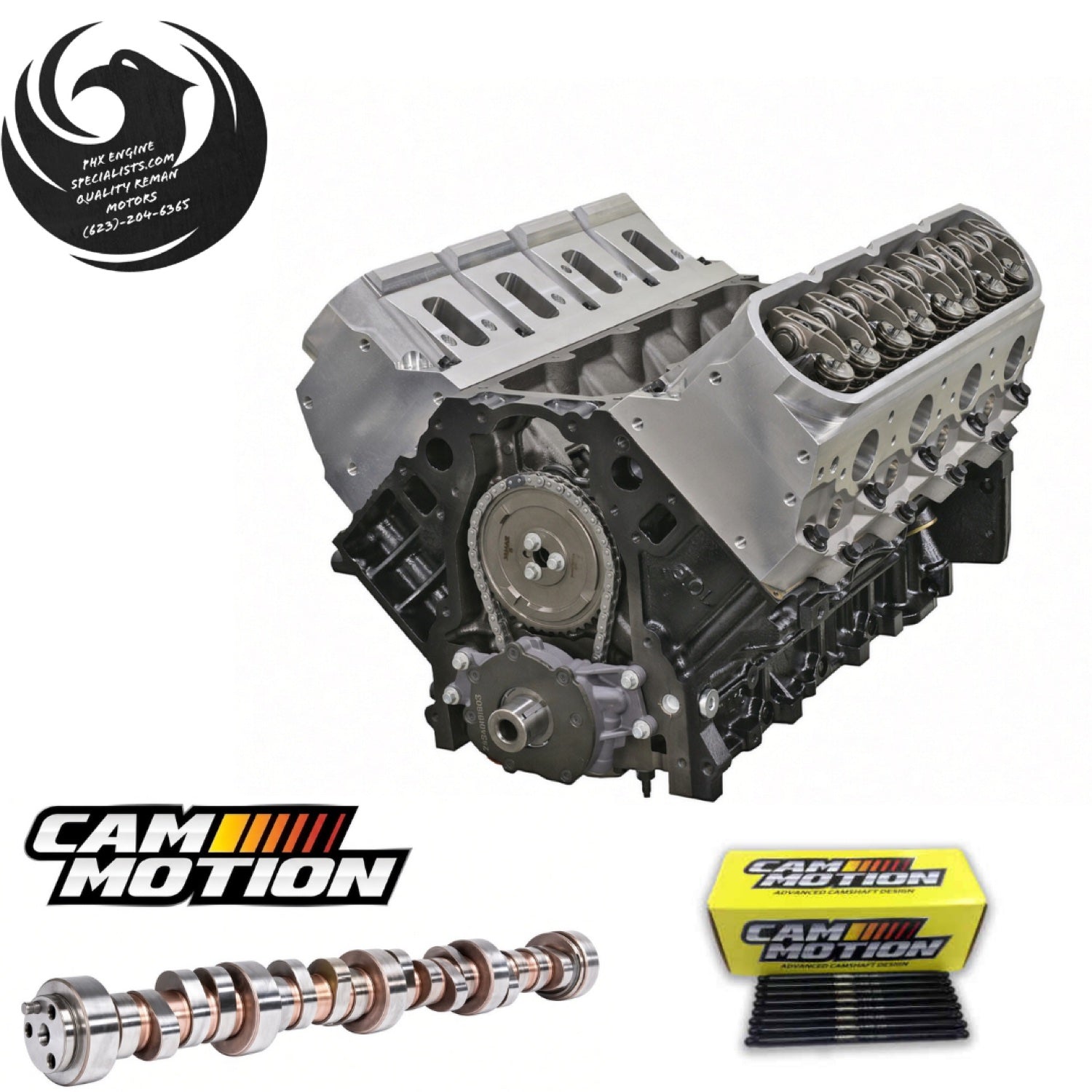

Non-VVT (LQ4 / LQ9): Cam Motion

• Stage 1: mild performance idle. Typical gain: about +40 hp with a proper tune; results vary by vehicle, tune, and supporting mods.
• Stage 2: mild performance idle. Typical gain: about +50 hp with a proper tune; results vary by vehicle, tune, and supporting mods.
• Stage 3: strongest mid-to-upper RPM pull of the three, with a choppy, noticeable lope at idle and an aggressive exhaust note.
• Stage 1 and Stage 2 gain figures are based on Cam Motion's dyno tests of these cams on a 6.0L.

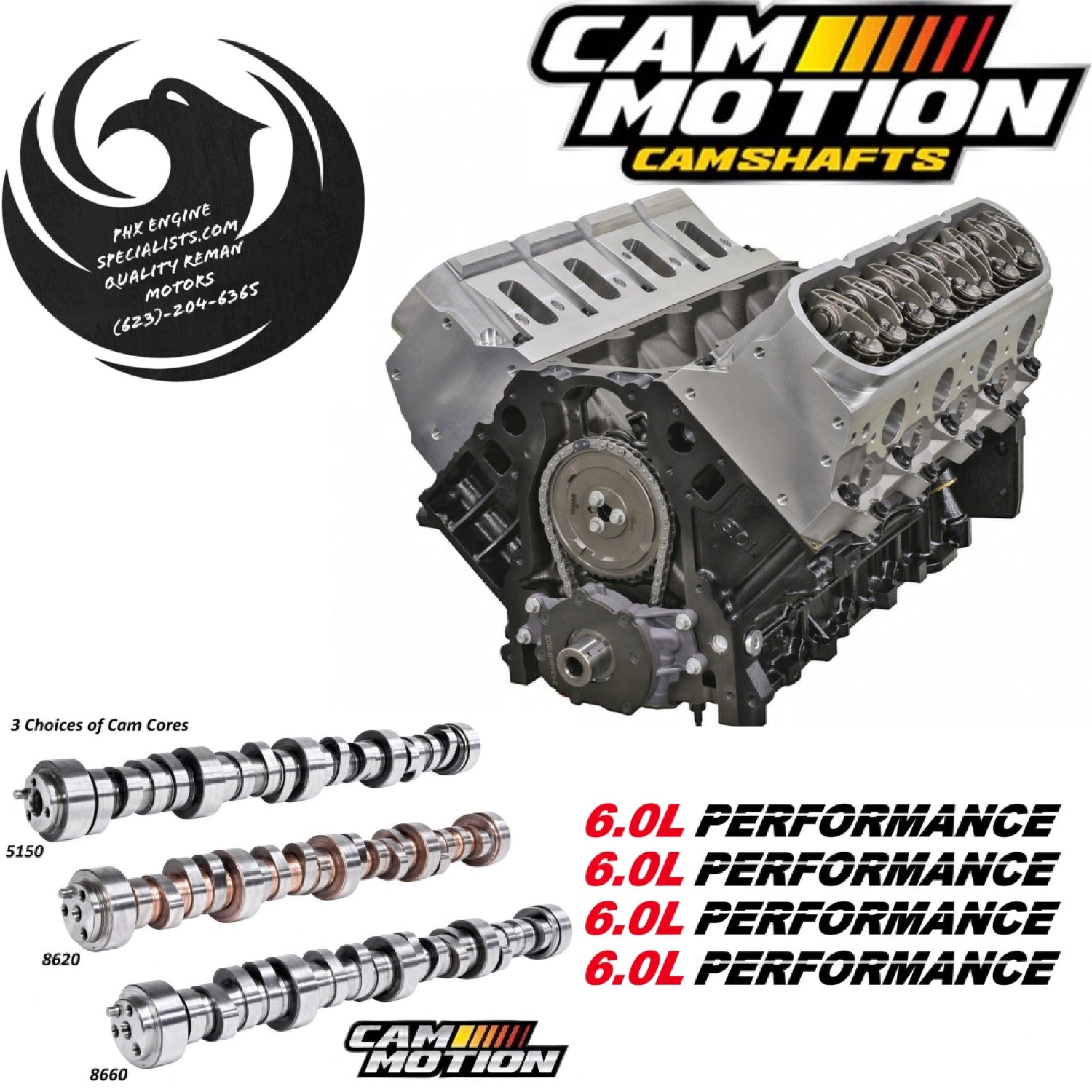

• Cam core: 5150 steel core standard. 8620 core upgrade available on request (price quoted).

VVT (LY6 / L96): COMP Cams

COMP's single-bolt Gen IV VVT cams with a COMP phaser limiter, matched to the cam phaser in your engine. Most LY6 / L96 engines use the GM 12606358 phaser (COMP 189-series cam above with the 5460 limiter). Some 2007-2008 engines have the earlier GM 12585994 phaser; those get COMP's matching 156-series version of the same grind (156-400-13, 156-401-13 or 156-402-13) with the 5456 limiter. COMP rates Stage 1 for off-idle torque in trucks and heavy vehicles, and Stage 2 for heavy vehicles with stock gearing. Call us about converter and gearing for Stage 3.

Keep or delete VVT, no extra charge. Choose what fits your truck and tell us in the order notes (or call 623-204-6365):

• Keep VVT (recommended for most trucks): best low-end torque, towing, and drivability; uses the COMP VVT cam with a phaser limiter.
• Delete VVT: removes the cam phaser for simpler, fixed cam timing and more cam choices; best for bigger cams or boosted builds; can give up some low-end torque.

A VVT delete requires a tune to turn off VVT. If you don't tell us, we keep VVT.

Custom / other brand cam (+$300): we can use any make of camshaft you request (Brian Tooley, Texas Speed, Comp, Cam Motion and more). Custom grinds are non-refundable.

Results vary with tune, converter, gearing and supporting mods.

Every stage includes

• Cam installed in your engine
• Matching valve springs
• Pushrods
• VVT phaser limiter on VVT engines (COMP 5460, or 5456 for the earlier 12585994 phaser)

Tune required. A tune is required to run the cam. We do not tune.

Stock 6.0L versions

Prefer a stock cam? Check the 8th digit of your VIN and see:

• 2001-2007 without VVT (LQ4 VIN U / LQ9 VIN N): see our GM 6.0L non-VVT (LQ4 / LQ9) listing
• 2007-2020 with VVT (LY6 VIN K / L96 VIN G): see our GM 6.0L VVT (LY6 / L96) listing

What's included

• Machined, milled and polished internals (crankshaft, block, cylinder bores)
• All new bearings and parts: main and rod bearings, pistons, piston rings, head gaskets, timing set and guides, lifters
• Cylinder heads fully machined: 3-angle performance valve job including seats, diamond mill finish, new valve seals

Recommended add-ons

• GM 6.0L Vortec Engine Gasket Kit - $200

Delivery type

• Business with dock/forklift or terminal pickup: free
• Business without dock (lift gate): +$100
• Residential (includes lift gate): +$300

Shipping is free within the Continental United States to commercial addresses with a forklift/dock or terminal pickup. If the delivery address doesn't match the delivery type selected, the difference will be charged before shipping. Alaska & Hawaii: online checkout isn't available for engines shipping to AK or HI. Call 623-204-6365 for a freight quote before ordering. Crate size: 40" x 40" x 30"; approx. weight 450 lbs.

Break-in

The first 1,000 miles are the break-in period. Use conventional oil only, change the oil and filter at 500 miles, vary your RPM, and avoid towing, heavy loads and long idling. Check your oil level regularly, since some oil burn-off is normal until the rings seat. Follow our break-in procedure.

Warranty and core

Warranty: high-performance build, sold without warranty. If something's wrong, we'll work with you case by case to make it right. See our Warranty & Refund Policy.

Core charge: none. All engines are built to order.

Returns and cancellations: this is a high-performance upgrade, so there are no refunds or returns. You can cancel within 24 hours of ordering for a full refund. Custom grind cams are non-refundable.

Questions about fitment? Contact us before ordering.
