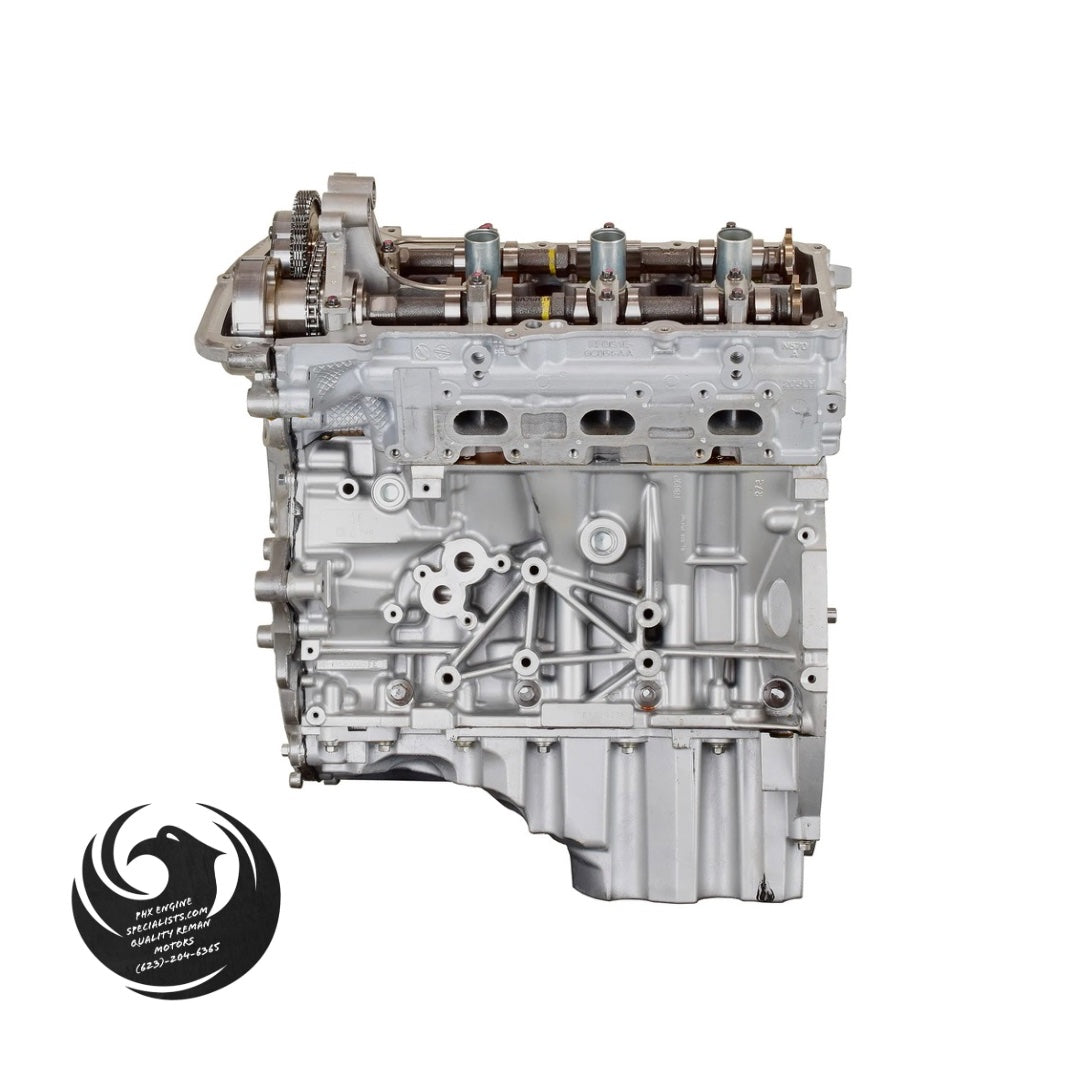

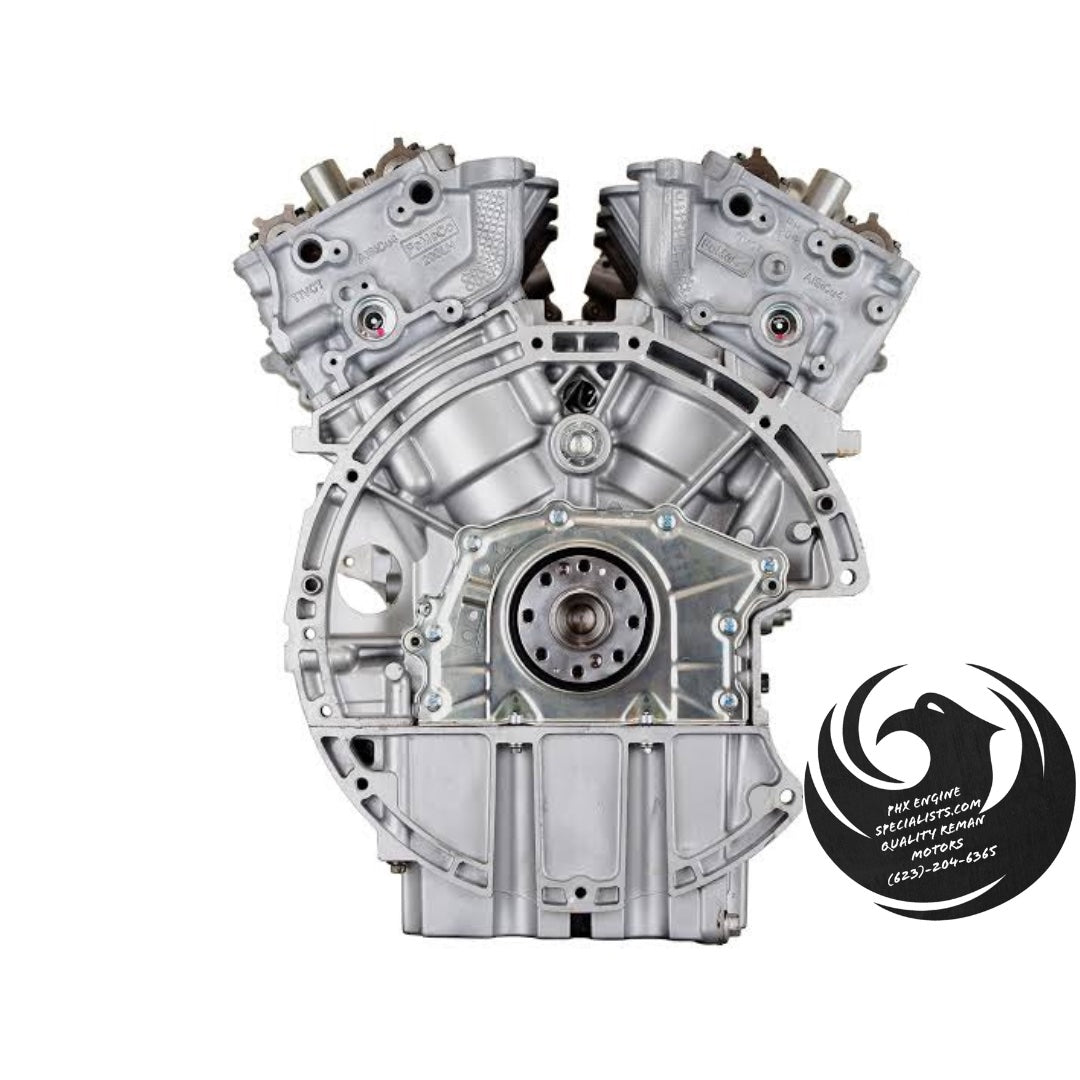

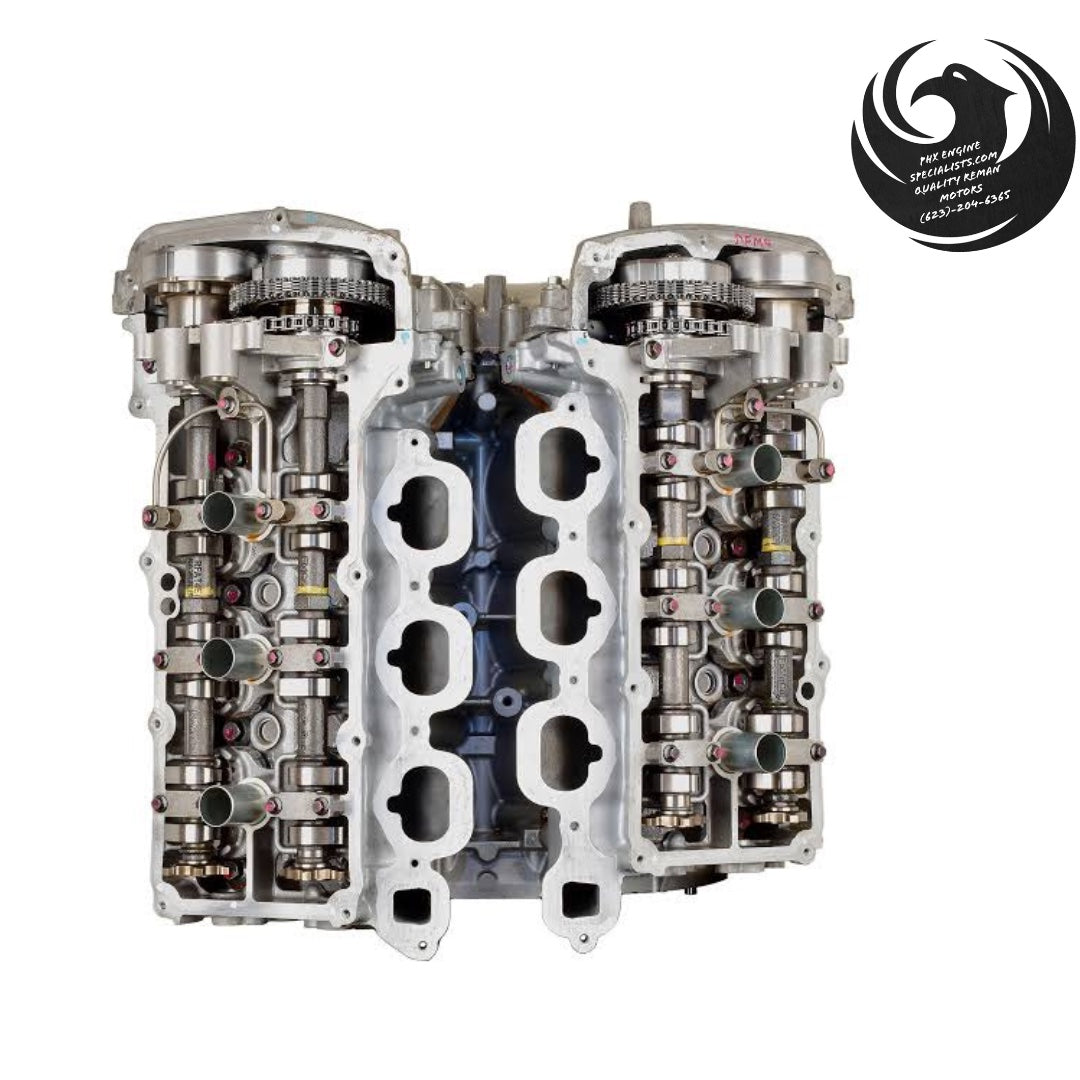

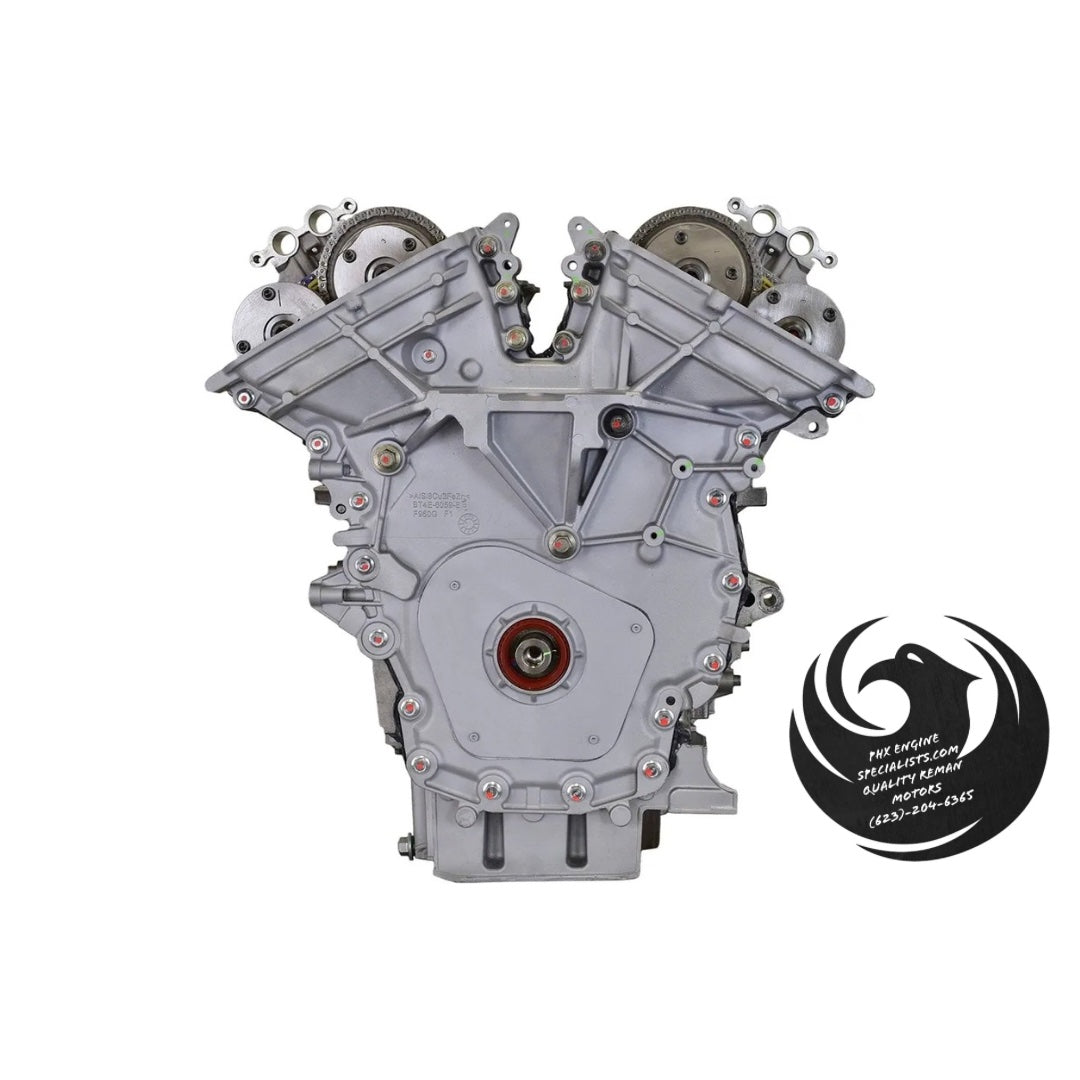

Remanufactured Ford 3.5L / 3.7L Cyclone V6 (non-turbo) for front-wheel-drive and all-wheel-drive (transverse) Ford and Lincoln vehicles. Zero miles, built to order, free shipping, no core charge.

Build time: usually 5-7 days, plus shipping (varies by engine; contact us for current availability).

Fitment

Confirm your engine

• Engine: 3.5L iVCT (2007-2012), 3.5L Ti-VCT (2011-2019) or 3.7L (2009-2020). Choose your engine from the dropdown.
• VIN 8th digit: 8 for the 3.5L Ti-VCT.

Send us your VIN with your order to confirm fitment.

Notes

• New internal water pump included. On these engines the water pump is inside the engine, behind the timing cover, and driven by the timing chain. It is a common failure point, so every build includes a new internal water pump, installed during the build.

Not covered

• EcoBoost (turbo) V6 engines
• F-150, Mustang and Transit (rear-wheel-drive / 4x4) engines: see our RWD/4WD Cyclone listing

What's included

Built in our full-service in-house machine shop. Reused and remachined: connecting rods, crankshaft and cylinder heads. New OEM or aftermarket parts: bearings, rings, pistons, lifters, valves, timing components, camshafts, rockers and more.

• Machined, milled and polished internals (crankshaft, block, cylinder bores)
• All new bearings and parts: main and rod bearings, pistons, piston rings, head gaskets, timing set and guides
• Cylinder heads fully machined: 3-angle performance valve job including seats, diamond mill finish, new valve seals
• New internal water pump (installed)

Delivery type

• Business with dock/forklift or terminal pickup: free
• Business without dock (lift gate): +$100
• Residential (includes lift gate): +$300

Shipping is free within the Continental United States to commercial addresses with a forklift/dock or terminal pickup. If the delivery address doesn't match the delivery type selected, the difference will be charged before shipping. Alaska & Hawaii: online checkout isn't available for engines shipping to AK or HI. Call 623-204-6365 for a freight quote before ordering. Crate size: 40" x 40" x 30"; approx. weight 375 lbs.

Break-in

The first 1,000 miles are the break-in period. Use conventional oil only, change the oil and filter at 500 miles, vary your RPM, and avoid towing, heavy loads and long idling. Check your oil level regularly, since some oil burn-off is normal until the rings seat. Following the break-in procedure is required to keep your warranty.

Warranty and core

Warranty: 1-year unlimited-mile warranty on the engine only; labor is not covered. Optional 3-year extended warranty available for $1,500 (includes labor coverage at $50/hr). See our Warranty & Refund Policy. Add the 3-year extended warranty to your order.

Core charge: none. All engines are built to order.

Questions about fitment? Contact us before ordering.
